Inside a Semiconductor Fab: From Wafer to Die
Every chip in every phone, car and laptop starts life as a slice of near-perfect silicon; here is what actually happens to it before it becomes a working piece of electronics.
Why this process is so strange and so exacting
A semiconductor fabrication plant, or fab, is one of the most controlled environments humans build. The air is filtered thousands of times more thoroughly than in a hospital operating theatre, because a single dust particle can ruin a feature far smaller than that particle itself. Workers wear full-body ‘bunny suits’ not to protect themselves but to protect the product. Understanding what happens on the factory floor helps explain why chips are hard to make, why fabs cost billions of pounds, and why so few companies in the world can do this at the cutting edge.
It starts with sand, more or less
Silicon, the base material for most chips, is refined from quartz sand into extremely pure form, then melted and grown into a single, flawless crystal called an ingot. This ingot is sliced into thin, mirror-polished discs called wafers, typically the size of a large dinner plate. The wafer itself does almost nothing electrically at this stage; it is a blank canvas. Everything that makes a chip a chip is built on top of it in dozens, sometimes hundreds, of layered steps.
Photolithography: drawing with light
The defining step of chipmaking is photolithography. A light-sensitive chemical layer, called photoresist, is spread across the wafer. A patterned mask is then used to project light through a lens system, hardening or dissolving the resist in the shape of the circuit design for that layer. The unwanted resist is washed away, leaving a precise stencil on the wafer’s surface.
The circuits being drawn are almost unimaginably small, measured in nanometres, which is why the light source and lens quality matter so much. Advanced fabs use extreme ultraviolet light because ordinary visible or ultraviolet light simply cannot draw shapes that fine. This is the step most associated with the phrase ‘chipmaking equipment’, and it is where the most expensive machines in the entire industry are used, often costing more than a hundred million pounds each.
Etching, deposition and doping
Once the stencil is in place, the wafer goes through etching, where chemicals or plasma cut away material not protected by the hardened resist, carving the pattern permanently into the silicon or into a thin film on top of it. Then comes deposition, where new layers of material, sometimes metal, sometimes an insulator, are laid down atom by atom or molecule by molecule using vapour or chemical processes.
A separate but equally important step is doping, where the fab introduces tiny, carefully controlled amounts of other elements into the silicon to change how it conducts electricity. This is what creates the transistors, the microscopic switches that, wired together in their billions, perform the logic and memory functions of a chip. A single modern processor can contain tens of billions of these switches.
This whole sequence, pattern, etch, deposit, dope, is repeated layer upon layer, sometimes more than a hundred times, to build up the full three-dimensional structure of the circuit. Each layer must align with the ones below it to a precision smaller than a virus, which is why vibration control, temperature stability and air cleanliness are treated with such extreme seriousness.
Testing, cutting and packaging
Once all layers are complete, the wafer is covered in a grid of identical chip designs, each one called a die. Automated probes test every die on the wafer while it is still whole, checking that the electronics behave as expected. Dies that fail are marked and discarded; this is normal, and yield, the percentage of working dies per wafer, is one of the most closely watched numbers in the industry.

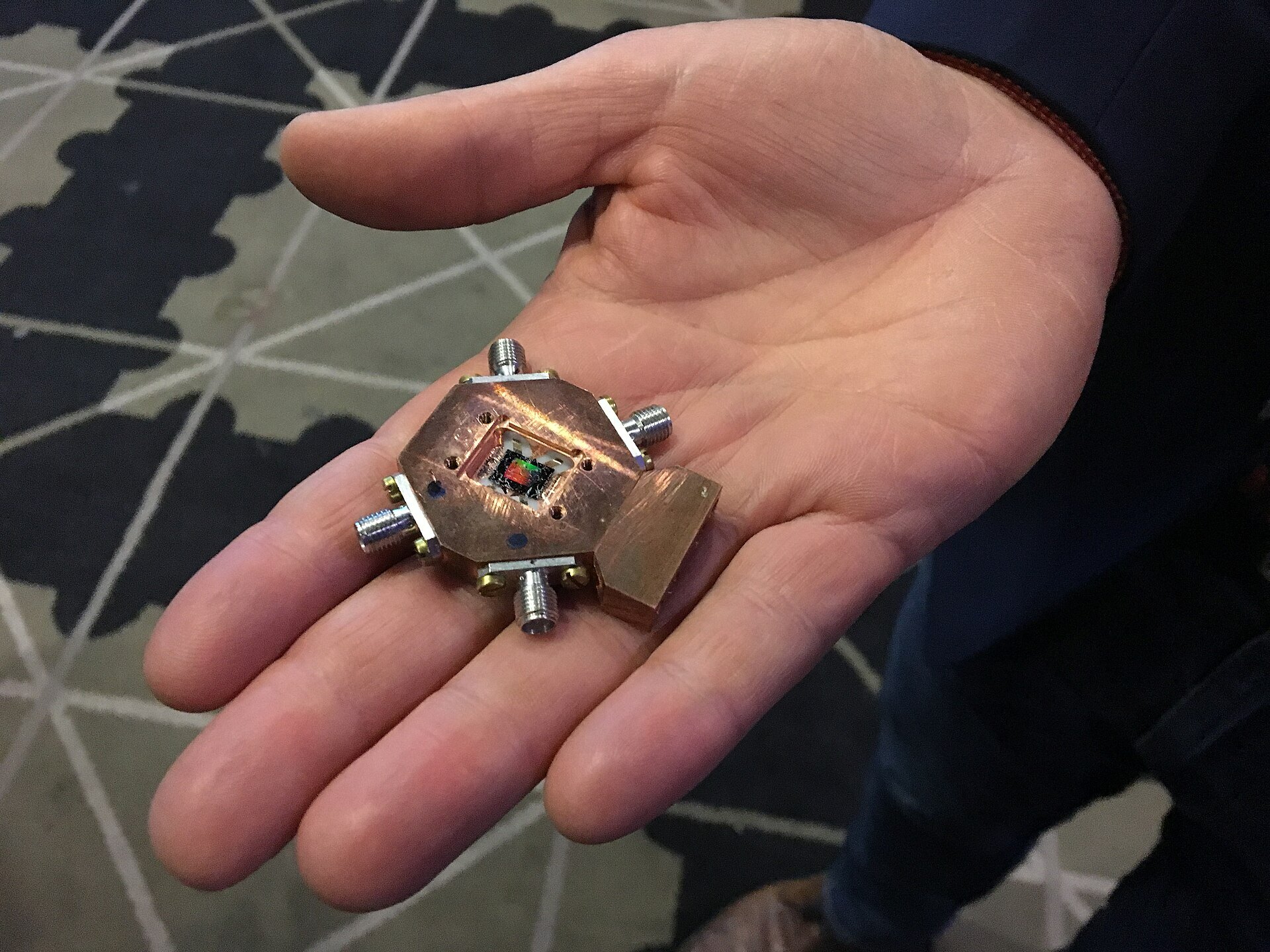

The wafer is then cut, or diced, into individual dies using a precision saw or laser. Each surviving die is packaged, meaning it is mounted onto a small carrier, wired up to external metal contacts, and sealed in protective material. This packaged unit is what most people would actually recognise as a computer chip if they saw it on a circuit board. Further testing follows before the chip is approved for sale.
Why this matters beyond the factory
This process explains several things that otherwise seem odd about the chip industry. It explains why building a new fab takes years and enormous capital, since the equipment for photolithography, etching and deposition must all be sourced, installed and calibrated to work in concert. It explains why designs cannot simply be moved between different fabs overnight, since each factory’s specific tools and chemistry affect how a design must be laid out. And it explains why even small disruptions to specialist chemicals, gases or machine parts can ripple through global electronics supply chains, since a fab cannot easily substitute one input for another mid-process.
For a curious reader, the key thing to hold onto is that a chip is not manufactured so much as grown, layer by layer, using light, chemistry and extraordinary precision, on a base of ordinary sand transformed into something close to a perfect crystal.
Where to check current detail
Fabrication techniques, equipment generations and industry capacity change quickly, so for up-to-date technical and policy detail it is worth consulting official and industry sources directly rather than relying on older explainers, including this one, for specifics.
